WHEN DYNAMICS AND EFFICIENCY BECOME ONE.
BMW TwinPower Turbo engines in the BMW 3 Series Gran Turismo.
Whether you opt for a petrol or diesel engine – one thing is certain: all of the available power units from the innovative modular inline engine family for the BMW 3 Series Gran Turismo convince with their output, dynamic power build-up and free-revving nature. At the same time, intelligent measures from BMW EfficientDynamics and the unique BMW TwinPower Turbo technology guarantee a supreme level of efficiency – for maximum performance with less fuel consumption and fewer emissions.
BMW TWINPOWER TURBO INLINE 6-CYLINDER PETROL ENGINE.
Commanding power, silky-smooth running and a stirring sound are the hallmarks of the BMW TwinPower Turbo inline 6-cylinder petrol engine from the latest generation of the BMW EfficientDynamics engine range. With Double-VANOS, Valvetronic, High-Precision Injection and a TwinScroll turbocharger, it generates 240 kW (326 hp) and has an average
combined fuel consumption rate of 7.3 to 7.0 litres (7.7 to 7.4 with xDrive) per 100 km.
| BMW 340i Gran Turismo | |
|---|---|
Zylinder/Ventile | 6/4 |
Hubraum in cm³ | 2,998 |
Hub/Bohrung (mm) | 94.6/82.0 |
Leistung in kW (PS) bei 1/min | 240 (326)/5,500 |
Max. Drehmoment (Nm) bei 1/min | 450/1,380-5,000 |
Verdichtungsverhältnis: 1 | 11.0 |
| BMW 340i xDrive Gran Turismo | |
|---|---|
Zylinder/Ventile | 6/4 |
Hubraum in cm³ | 2,998 |
Hub/Bohrung (mm) | 94.6/82.0 |
Leistung in kW (PS) bei 1/min | 240 (326)/5,500 |
Max. Drehmoment (Nm) bei 1/min | 450/1,380-5,000 |
Verdichtungsverhältnis: 1 | 11.0 |

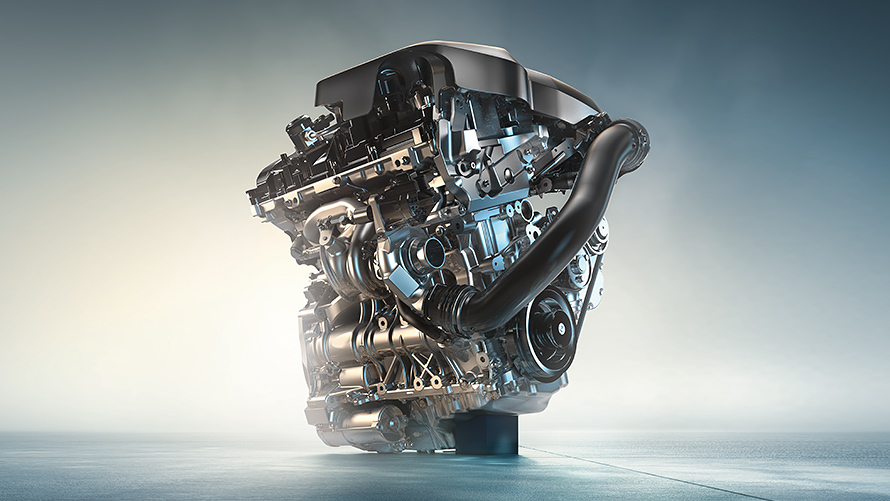

BMW TWINPOWER TURBO INLINE 4-CYLINDER PETROL ENGINE.
The latest-generation BMW TwinPower Turbo 2.0-litre 4-cylinder petrol engine guarantees maximum driving pleasure. It is notable for its agile power delivery as well as for its outstanding responsiveness even at low engine speeds, while also being exceptionally fuel efficient and low in emissions.
| BMW 320i Gran Turismo | |
|---|---|
Zylinder/Ventile | 4/4 |
Hubraum in cm³ | 1,998 |
Hub/Bohrung (mm) | 94.6/82.0 |
Leistung in kW (PS) bei 1/min | 135 (184)/5,000 |
Max. Drehmoment (Nm) bei 1/min | 290/1,350-4,250 [270/1,350-4,600] |
Verdichtungsverhältnis: 1 | 11.0 |
| BMW 320i xDrive Gran Turismo | |
|---|---|
Zylinder/Ventile | 4/4 |
Hubraum in cm³ | 1,998 |
Hub/Bohrung (mm) | 94.6/82.0 |
Leistung in kW (PS) bei 1/min | 135 (184)/5,000 |
Max. Drehmoment (Nm) bei 1/min | 270/1,350-4,600 |
Verdichtungsverhältnis: 1 | 11.0 |
| BMW 330i Gran Turismo | |
|---|---|
Zylinder/Ventile | 4/4 |
Hubraum in cm³ | 1,998 |
Hub/Bohrung (mm) | 94.6/82.0 |
Leistung in kW (PS) bei 1/min | 185 (252)/5,200 |
Max. Drehmoment (Nm) bei 1/min | 350/1,450-4,800 |
Verdichtungsverhältnis: 1 | 10.2 |
| BMW 330i xDrive Gran Turismo | |
|---|---|
Zylinder/Ventile | 4/4 |
Hubraum in cm³ | 1,998 |
Hub/Bohrung (mm) | 94.6/82.0 |
Leistung in kW (PS) bei 1/min | 185 (252)/5,200 |
Max. Drehmoment (Nm) bei 1/min | 350/1,450-4,800 |
Verdichtungsverhältnis: 1 | 10.2 |

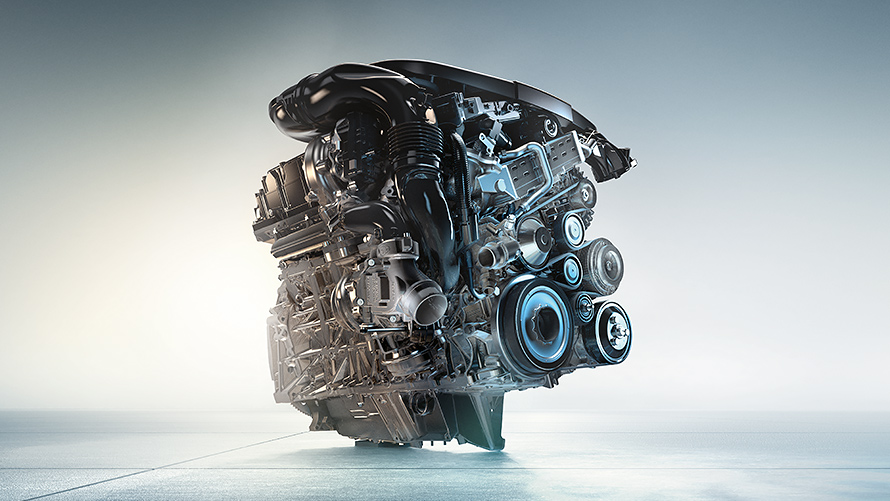

BMW TWINPOWER TURBO INLINE 6-CYLINDER DIESEL ENGINE.
The new-generation BMW TwinPower Turbo inline 6-cylinder diesel engine offers impressive power delivery combined with exemplary consumption figures, as a result of highly innovative technologies such as a turbocharger with variable turbine geometry and common rail direct injection. In the high-end version the engine delivers 230 kW (313 hp) and an impressive maximum torque of 630 Nm.
| BMW 330d Gran Turismo | |
|---|---|
Zylinder/Ventile | 6/4 |
Hubraum in cm³ | 2,993 |
Hub/Bohrung (mm) | 90.0/84.0 |
Leistung in kW (PS) bei 1/min | 190 (258)/4,000 |
Max. Drehmoment (Nm) bei 1/min | 560/1,500-3,000 |
Verdichtungsverhältnis: 1 | 16.5 |
| BMW 330d xDrive Gran Turismo | |
|---|---|
Zylinder/Ventile | 6/4 |
Hubraum in cm³ | 2,993 |
Hub/Bohrung (mm) | 90.0/84.0 |
Leistung in kW (PS) bei 1/min | 190 (258)/4,000 |
Max. Drehmoment (Nm) bei 1/min | 560/1,500-3,000 |
Verdichtungsverhältnis: 1 | 16.5 |
| BMW 335d xDrive Gran Turismo | |
|---|---|
Zylinder/Ventile | 6/4 |
Hubraum in cm³ | 2,993 |
Hub/Bohrung (mm) | 90.0/84.0 |
Leistung in kW (PS) bei 1/min | 230 (313)/4,400 |
Max. Drehmoment (Nm) bei 1/min | 630/1,500-2,500 |
Verdichtungsverhältnis: 1 | 16.5 |

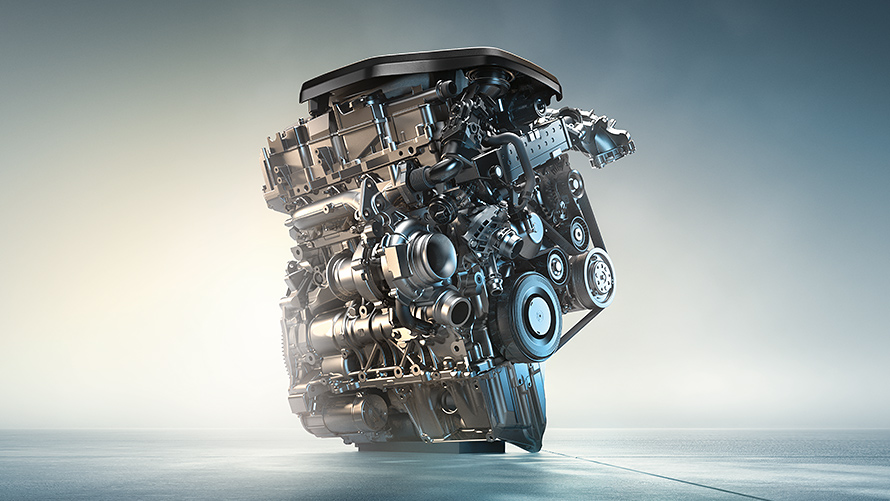

BMW TWINPOWER TURBO 4-CYLINDER DIESEL ENGINE.
The BMW TwinPower Turbo 2.0-litre 4-cylinder diesel engines of the latest generation demonstrate agile power delivery as well as excellent responsiveness, even at low engine speeds. Turbocharger technology with variable turbine geometry and CommonRail direct injection ensures that these engines are exceptionally fuel efficient and low in emissions.
| BMW 318d Gran Turismo | |
|---|---|
Zylinder/Ventile | 4/4 |
Hubraum in cm³ | 1,995 |
Hub/Bohrung (mm) | 90.0/84.0 |
Leistung in kW (PS) bei 1/min | 110 (150)/4,000 |
Max. Drehmoment (Nm) bei 1/min | 320/1,500-3,000 |
Verdichtungsverhältnis: 1 | 16.5 |
| BMW 320d Gran Turismo | |
|---|---|
Zylinder/Ventile | 4/4 |
Hubraum in cm³ | 1,995 |
Hub/Bohrung (mm) | 90.0/84.0 |
Leistung in kW (PS) bei 1/min | 140 (190)/4,000 |
Max. Drehmoment (Nm) bei 1/min | 400/1,750-2,500 |
Verdichtungsverhältnis: 1 | 16.5 |
| BMW 320d xDrive Gran Turismo | |
|---|---|
Zylinder/Ventile | 4/4 |
Hubraum in cm³ | 1,995 |
Hub/Bohrung (mm) | 90.0/84.0 |
Leistung in kW (PS) bei 1/min | 140 (190)/4,000 |
Max. Drehmoment (Nm) bei 1/min | 400/1,750-2,500 |
Verdichtungsverhältnis: 1 | 16.5 |
| BMW 325d Gran Turismo | |
|---|---|
Zylinder/Ventile | 4/4 |
Hubraum in cm³ | 1,995 |
Hub/Bohrung (mm) | 90.0/84.0 |
Leistung in kW (PS) bei 1/min | 165 (224)/4,400 |
Max. Drehmoment (Nm) bei 1/min | 450/1,500-3,000 |
Verdichtungsverhältnis: 1 | 16.5 |
Fuel consumption and CO2 emissions.
Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets, from Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany, or under http://www.dat.de/en/offers/publications /guideline-for-fuel-consumption.html.
Values without brackets refer to models with manual transmission (if available); values in square brackets refer to models with Steptronic transmission (if available).
Fuel consumption is determined in accordance with the ECE driving cycle (93/116/EC) made up of approximately one third urban traffic and two thirds extra-urban driving (based on the distance covered). CO2 emissions are measured in addition to fuel consumption as such. Fuel consumption levels are calculated on the basis of vehicles with standard equipment. Special equipment (e.g. wider tyres) can have a significant impact on fuel consumption and driving performance levels.
The technical data specified apply to vehicles in the German market. The models illustrated may, in part, include optional equipment and accessories not fitted as standard. According to the specific requirements of other markets, alterations may occur regarding models, standard and optional equipment as described in the text and illustrations. For precise information, please contact your BMW Partner. Subject to change in design and equipment. Subject to error. Equipment specific to national markets is not represented here.
Unladen weight (EU) in kg: the figure quoted includes a 90 per cent tank filling, 68 kg for the driver and 7 kg for luggage. Unladen weight applies to vehicles with standard equipment. Optional equipment may increase this figure.
Rated output: BMW recommends the use of super unleaded 95 RON fuel. Unleaded RON 91 fuel or higher with a maximum ethanol limit of 10 percent (E10) is also permitted. The performance and fuel consumption rates listed are based on the use of RON 98 fuel.
