TECHNICAL DATA OF THE NEW BMW XM.

THE XMTECHNICAL DATA OF THE NEW BMW XM.

The new BMW XM – engines, facts and dimensions.

BMW XM: TECHNICAL DATA.

Select model
  • BMW XM (9)

Total Powertrain (1)(2)

Powertrain type Petrol - plug-in hybrid
Power in kW (hp) 480 (653) (8)
Torque in Nm 800 (8)
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine (1)

Cylinders 8
Displacement in cm³ 4395
Nominal power in kW (hp)/1/min 360 (489)/5400-7200
Nominal torque in Nm/1/min 650

Electric motor (2)(3)

(Nominal) power/30 minutes power in kW (hp) 145 (197)/57 (77)
(Nominal) torque in Nm 280

Performance

Acceleration 0–100 km/h in s 4.3
Maximum speed in km/h 250
Electric top speed in km/h 140

Fuel economy/CO2 emissions (1)(4)

Fuel consumption, urban NEDC in l/100 km -
Fuel consumption, extra-urban NEDC in l/100 km -
Fuel consumption, combined NEDC in l/100 km 2.7
CO2-emissions, combined NEDC in g/km 61.0
Electricity consumption, combined NEDC in kWh/100km 32.0
Electric range, NEDC in km (5) 87

High-voltage/48 volt battery, charging (6)

Battery capacity in kWh 25.7
Maximum charging power AC/DC in kW 7.4/-
Charging time DC 10–80% in min -
Charging time AC 0–100% in h 4.25

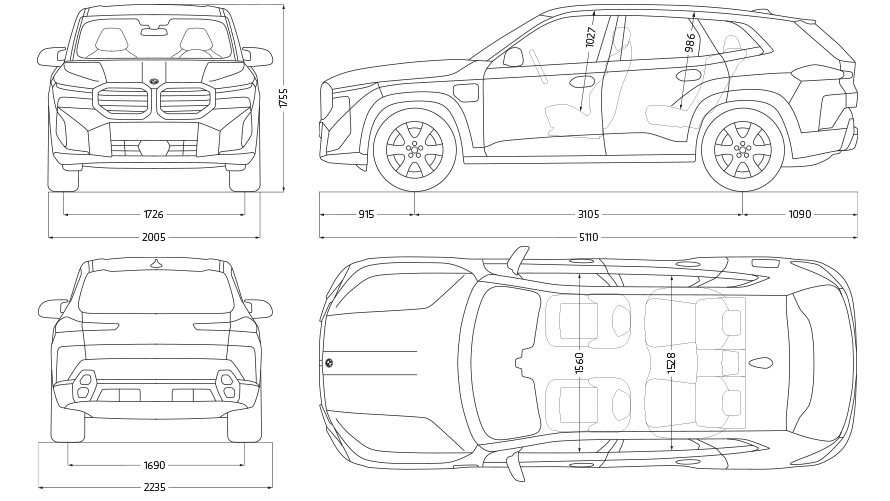

Dimensions/weights

Length/width/height in mm 5110/2005/1755
Wheelbase in mm 3105
Curb weight in kg (7) 2785
Luggage capacity in l 527-1820
Fuel capacity in l 69
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2700/140

Fuel consumption and CO2 emissions.

  • BMW XM*,**:
    Fuel consumption, combined in l/100 km): 2.7
    CO2 emissions, combined in g/km: 61.0
    Energy consumption, combined in kWh/100 km: 30.1–28.9

    BMW XM Red Label*,**:
    Fuel consumption, combined in l/100 km: 1.7–1.4
    CO2 emissions, combined in g/km: 37–33
    Energy consumption, combined in kWh/100 km: 32.4–30.4

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/e10.

    * At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.

    ** Provisional figures.
