DESIGN AND PERFORMANCE.
DESIGN OPTIONS, DRIVING DYNAMIC FEATURES AND THE M SPORTS STEERING OF THE BMW M135I XDRIVE.

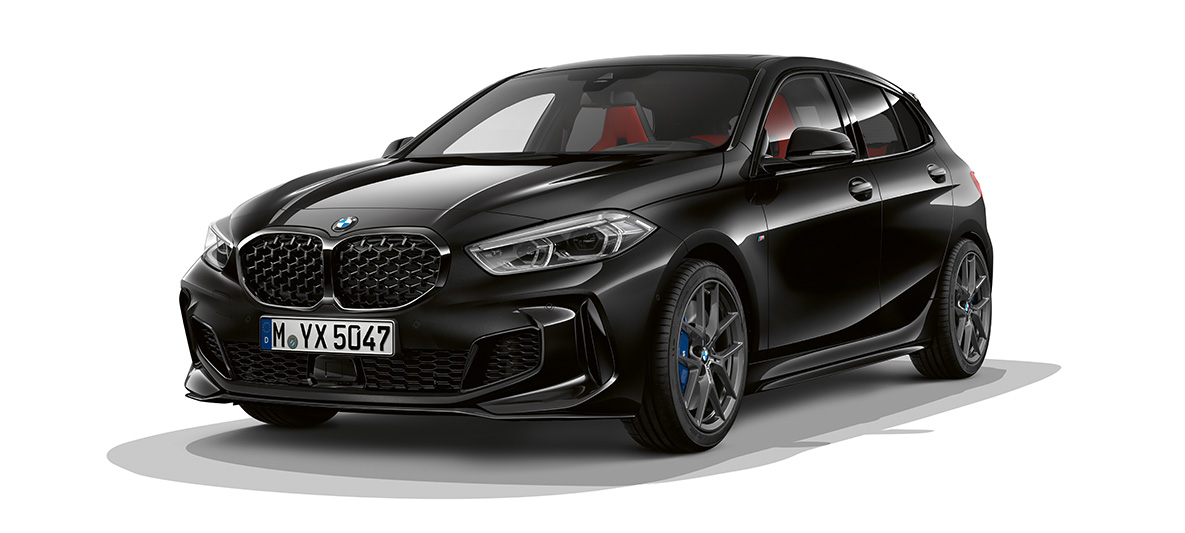

A clear leader – the BMW M135i xDrive spells out its dynamic predisposition clear at first glance. Under Design, you can discover an exclusive selection of sporting equipment options for the interior and exterior of this fascinating BMW 1 Series M Automobile. In the Driving Dynamics section, you will find out more about optional and standard-feature components from the areas of drive and chassis – for maximum performance and agility.
BMW kidney grille in mesh design.
The BMW kidney grille in mesh design is completely finished in Cerium Grey and has an elaborately designed grid inside. This grid structure, inspired by racing, lends depth and value to the front and sets a high-quality and dynamic accent in the details.
M Aerodynamics package.
The M Aerodynamics package with M specific front apron, rear apron and side skirt trim communicates pure dynamics, highlighting the vehicle's athletic character. The trim portions are painted in the body colour and feature inserts in Black high-gloss.
M rear spoiler.
The M rear spoiler emphasises the vehicle's athletic silhouette and reduces unwanted aerodynamic uplift. By producing downforce on the rear axle, it provides the vehicle with greater driving stability.
M seat belts.
The M seat belts with belt tensioner and belt force limiter boast an exquisite stitching in the classic M colours and emphasise the high-quality and sporty ambience in the interior.
M Leather steering wheel.
The M Leather steering wheel with multifunction buttons, an M badge and an integrated driver-side airbag is featured in three-spoke design. With a steering wheel rim in leather 'Walknappa' Black with black stitching and contoured thumb rests, it provides a direct, athletic steering experience.
M sports seats for driver and front passenger.
The M sports seats with integrated headrests, deep sitting surface and high side and backrest bolsters offer the driver and front passenger improved support, even in fast turns. In addition, the seat can be adjusted to your individual body size thanks to the integrated backrest width adjustment.
Exclusively for the M135i: slanted tailpipes left and right and in the colour Cerium Grey. In this way, the tailpipes with a diameter of 100 mm make a visual statement and emphasise the sportiness of the M135i.
Interior trim finishers 'Illuminated Boston'.
The interior trim finishers 'Illuminated Boston' with 'Mesh' accent on the dashboard and door trim lend the interior a progressive ambience with a high sense of value. The shimmering pattern of the discreetly backlit finishers creates both an attractive as well as a pleasant atmosphere in the vehicle.
BMW M135i xDrive engine.
A top athlete conveying pure driving pleasure: The M TwinPower Turbo 4-cylinder petrol engine in the BMW M135i is particularly powerful because it is equipped with new pistons, a larger turbocharger, optimised intake air routing, a high-performance cooling package and a flap-controlled M exhaust system.
Steptronic Sport transmission.
The 8-speed Steptronic Sport transmission offers incredibly sporty gear changes. Whether automatic or manual using gearshift paddles or gear lever – for comfortable coasting or incredibly dynamic driving. In SPORT mode and with the gear lever in the left-hand S/M position, the gear shifts are configured for the maximum performance.
M Sport suspension.
M Sport suspension lowers the vehicle by approximately ten millimetres. It also features shorter suspension springs and tighter damper settings, as well as harder stabilisers. Combined together, they result in an even more direct suspension design, which enables a distinctly sporty driving style.
M Sport brake.
The M Sport brake with multi-piston brake callipers in dark blue and M designation delivers exceptional braking performance. Adapted to the vehicle's very high dynamic potential, it also allows an exceptional athletic driving style and excellent braking on wet surfaces.
M Sports steering.
The M Sports steering with Servotronic creates a direct and agile steering response and reduces steering effort. Your vehicle can be directed more precisely, offering highly athletic handling characteristics, particularly on winding roads.
The intelligent BMW xDrive all-wheel drive system smoothly and variably distributes drive power to the front and rear wheels for maximum traction, driving dynamics and safety in every driving situation. For even better agility, the electronically controlled power distribution for instance counterbalances oversteer or understeer on bends.
DIGITAL SERVICES IN THE BMW M135I XDRIVE.
BMW Live Cockpit Professional.
The BMW Live Cockpit Professional with navigation function includes two high-quality displays consisting of a high-resolution 10.25" Control Display that can be operated by touch and a fully digital 10.25" instrument display. The BMW Operating System 7.0 can also be operated via the iDrive Touch Controller.
Preparation for Apple CarPlay®.
Why go without the features of your iPhone in your BMW when you can continue operating it as usual? The preparation for Apple CarPlay® gives you remote access to telephony as well as apps like iMessage, WhatsApp, TuneIn, Spotify and Apple Music. You can also use the voice button on the steering wheel to access Siri, Apple’s voice assistant.

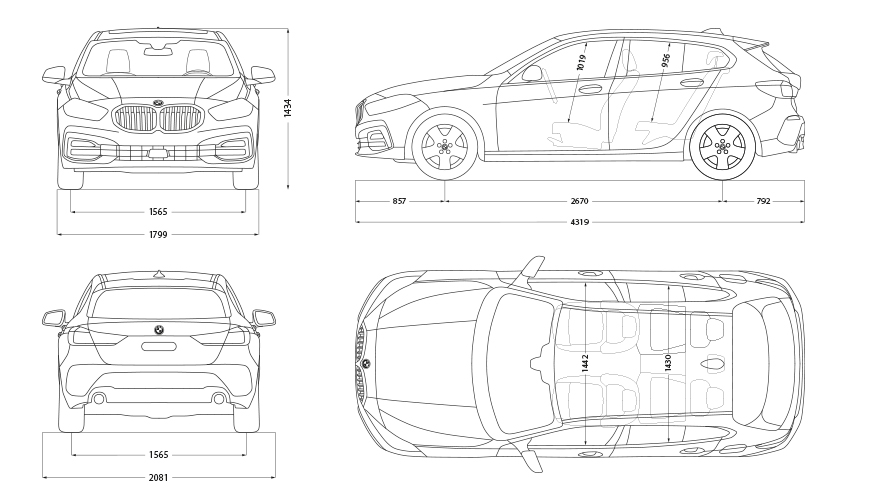

BMW M135i xDRIVE TECHNICAL DATA.
|Unladen weight EU in kg||1,600|
|Max. permissible weight in kg||2.085|
|Permitted load in kg||560|
|Permitted axle load front/rear in kg||1,120/1,020|
|Luggage capacity min. (seats up or roof down) in l||380|
|Luggage capacity max. (seats down or roof up) in l||1,200|
|Trailer load 8% (braked) in kg||-|
|Trailer load 12% (braked) in kg||-|
|Trailer load (unbraked) in kg||-|
|Capacity in ccm||1,998|
|Stroke/bore in mm||94.6/82.0|
|Engine power in kW (PS) at 1/min||225 (306)/5,000-6,250|
|Engine torque (Nm) at 1/min||450/1,750-4,500|
|Compression ratio : 1||9.5|
|Top speed in km/h||250|
|Acceleration 0–100 km/h in s||4.8|
|Urban in l/100 km||9.3|
|Extra-urban in l/100 km||6.4|
|Combined in l/100 km||7.5|
|CO2 combined emissions in g/km||171|
|Tank capacity, approx. in l||50|
|Tyre dimensions front||225/40 R18 92 Y XL|
|Tyre dimensions rear||225/40 R18 92 Y XL|
|Wheel dimensions and material front||8 J x 18 inches, light-alloy|
|Wheel dimensions and material rear||8 J x 18 inches, light-alloy|
