BMW 5 SERIES SEDAN: ENGINES & TECHNICAL DATA

The key facts and figures for the BMW 5 Series Sedan at a glance: engines, consumption, CO2 emissions and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.

Read more
THE 5BMW 5 SERIES SEDAN: ENGINES & TECHNICAL DATA

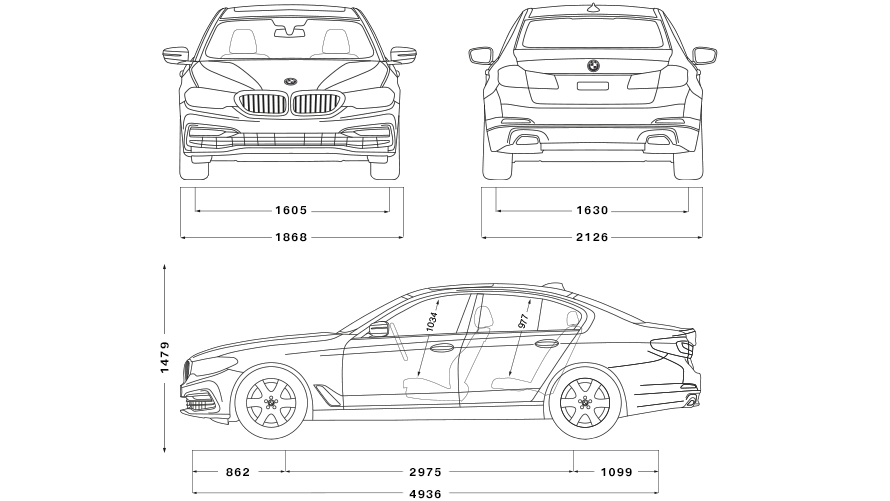

TECHNICAL DATA.

Weight
Unladen weight EU in kg
1,755
Max. permissible weight in kg
2,360
Permitted load in kg
680
Permitted axle load front/rear in kg
1,140/1,310
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
183-185 (249-252)/5,200-6,500
Engine torque (Nm) at 1/min
350/1,450-4,800
Compression ratio : 1
10.2
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
6.3-6.0
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
8.9
Extra-urban in l/100 km
6.3
Combined in l/100 km
7.3
CO2 combined emissions in g/km
166
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (PS) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (PS)
-
Combined torque Nm
-
