THE BMW 4 SERIES COUPÉ: ENGINES &
TECHNICAL DATA
Discover the powerful petrol and diesel engines as well as the dimensions and other technical data of the BMW 4 Series Coupé.
THE 4 THE BMW 4 SERIES COUPÉ: ENGINES & <br>TECHNICAL DATA
Discover the powerful petrol and diesel engines as well as the dimensions and other technical data of the BMW 4 Series Coupé.

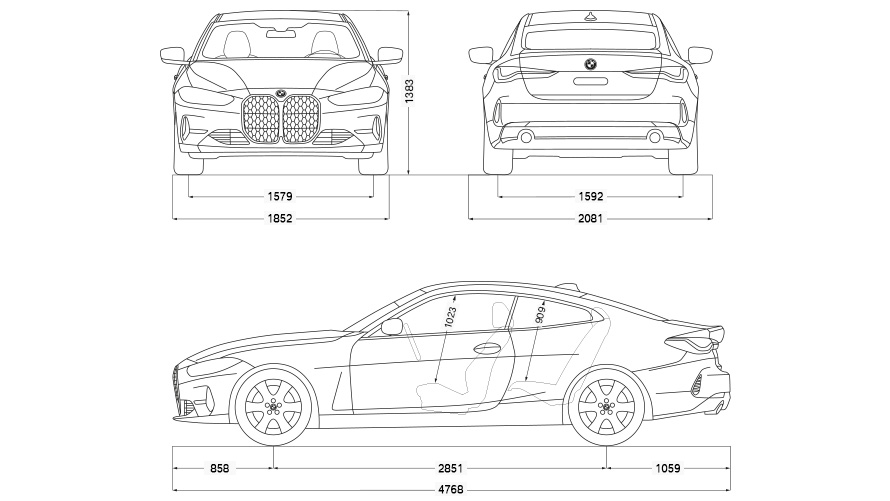

TECHNICAL DATA OF THE BMW 4 SERIES COUPÉ.
Select model
- BMW 420i Coupé
- BMW 420i xDrive Coupé
- BMW 430i Coupé
- BMW 430i xDrive Coupé
- BMW M440i Coupé
- BMW M440i xDrive Coupé
- BMW 420d Coupé
- BMW 420d xDrive Coupé
- BMW 430d xDrive Coupé
- BMW M440d xDrive Coupé
No search result found. Please try another input
| Unladen weight EU in kg | 1,600 |
|---|---|
| Max. permissible weight in kg | 2,015 |
| Permitted load in kg | 490 |
| Permitted axle load front/rear in kg | 970/1,120 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,600 |
| Trailer load 12% (braked) in kg | 1,600 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 135 (184)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 300/1,350-4,000 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 240 |
|---|---|
| Acceleration 0–100 km/h in s | 7.5 |
| Urban in l/100 km | 7.6 |
|---|---|
| Extra-urban in l/100 km | 5.7 |
| Combined in l/100 km | 6.4 |
| CO2 combined emissions in g/km | 146 |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/50 R17 98 Y XL |
|---|---|
| Tyre dimensions rear | 225/50 R17 98 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Unladen weight EU in kg | 1,665 |
|---|---|
| Max. permissible weight in kg | 2,080 |
| Permitted load in kg | 490 |
| Permitted axle load front/rear in kg | 1,020/1,130 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,800 |
| Trailer load 12% (braked) in kg | 1,800 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 96.4/82.0 |
| Engine power in kW (hp) at 1/min | 135 (184)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 300/1,350-4,000 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 238 |
|---|---|
| Acceleration 0–100 km/h in s | 7.8 |
| Urban in l/100 km | 8.0 |
|---|---|
| Extra-urban in l/100 km | 6.2 |
| Combined in l/100 km | 6.9 |
| CO2 combined emissions in g/km | 157 |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/50 R17 98 Y XL |
|---|---|
| Tyre dimensions rear | 225/50 R17 98 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Unladen weight EU in kg | 1,620 |
|---|---|
| Max. permissible weight in kg | 2,030 |
| Permitted load in kg | 485 |
| Permitted axle load front/rear in kg | 980/1,120 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,600 |
| Trailer load 12% (braked) in kg | 1,600 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 180-190 (245-258)/4,500-6,500 - 5,000-6,500 |
| Engine torque (Nm) at 1/min | 400/1,550-4,400 - 1,600-4,000 |
| Compression ratio : 1 | 10.2 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 5.9-5.8 |
| Urban in l/100 km | 8.0 |
|---|---|
| Extra-urban in l/100 km | 5.8 |
| Combined in l/100 km | 6.6 |
| CO2 combined emissions in g/km | 151 |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/50 R17 98 Y XL |
|---|---|
| Tyre dimensions rear | 225/50 R17 98 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Unladen weight EU in kg | 1,680 |
|---|---|
| Max. permissible weight in kg | 2,095 |
| Permitted load in kg | 490 |
| Permitted axle load front/rear in kg | 1,030/1,130 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,800 |
| Trailer load 12% (braked) in kg | 1,800 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 96.4/82.0 |
| Engine power in kW (hp) at 1/min | 180-190 (245-258)/4,500-6,500 - 5,000-6,500 |
| Engine torque (Nm) at 1/min | 400/1,550-4,400 - 1,600-4,000 |
| Compression ratio : 1 | 10.2 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 5.7-5.6 |
| Urban in l/100 km | 8.3 |
|---|---|
| Extra-urban in l/100 km | 6.2 |
| Combined in l/100 km | 7.0 |
| CO2 combined emissions in g/km | 159 |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/50 R17 98 Y XL |
|---|---|
| Tyre dimensions rear | 225/50 R17 98 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Unladen weight EU in kg | 1,770 |
|---|---|
| Max. permissible weight in kg | 2,190 |
| Permitted load in kg | 495 |
| Permitted axle load front/rear in kg | 1,070/1,180 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,800 |
| Trailer load 12% (braked) in kg | 1,800 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2.998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 275-285 (374-387)/5,500-6,500 - 5,800-6,500 |
| Engine torque (Nm) at 1/min | 500/1,800-5,000 - 1,900-5,000 |
| Compression ratio : 1 | 10.2 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 4.8 |
| Urban in l/100 km | 9.8 |
|---|---|
| Extra-urban in l/100 km | 6.4 |
| Combined in l/100 km | 7.7 |
| CO2 combined emissions in g/km | 174 |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/45 R18 95 Y XL |
|---|---|
| Tyre dimensions rear | 255/40 R18 99 Y XL |
| Wheel dimensions and material front | 7.5 J x 18 inches, light-alloy |
| Wheel dimensions and material rear | 8.5 J x 18 inches, light-alloy |
| Unladen weight EU in kg | 1.815 |
|---|---|
| Max. permissible weight in kg | 2,245 |
| Permitted load in kg | 505 |
| Permitted axle load front/rear in kg | 1,110/1,190 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,800 |
| Trailer load 12% (braked) in kg | 1,800 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2.998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 275-285 (374-387)/5,500-6,500 - 5,800-6,500 |
| Engine torque (Nm) at 1/min | 500/1,800-5,000 - 1,900-5,000 |
| Compression ratio : 1 | 10.2 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 4.5 |
| Urban in l/100 km | 10.1 |
|---|---|
| Extra-urban in l/100 km | 6.4 |
| Combined in l/100 km | 7.8 |
| CO2 combined emissions in g/km | 178 |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/45 R18 95 Y XL |
|---|---|
| Tyre dimensions rear | 255/40 R18 99 Y XL |
| Wheel dimensions and material front | 7.5 J x 18 inches, light-alloy |
| Wheel dimensions and material rear | 8.5 J x 18 inches, light-alloy |
| Unladen weight EU in kg | 1,680 |
|---|---|
| Max. permissible weight in kg | 2,095 |
| Permitted load in kg | 490 |
| Permitted axle load front/rear in kg | 1,020/1,160 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,600 |
| Trailer load 12% (braked) in kg | 1,600 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,995 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 120-140 (163-190)/4,000 |
| Engine torque (Nm) at 1/min | 400/1,750-2,500 - 1,750-2,250 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 229-240 |
|---|---|
| Acceleration 0–100 km/h in s | 7.8-7.1 |
| Urban in l/100 km | 5.4 |
|---|---|
| Extra-urban in l/100 km | 4.5 |
| Combined in l/100 km | 4.8 |
| CO2 combined emissions in g/km | 127 |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/50 R17 98 Y XL |
|---|---|
| Tyre dimensions rear | 225/50 R17 98 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Unladen weight EU in kg | 1,745 |
|---|---|
| Max. permissible weight in kg | 2,165 |
| Permitted load in kg | 495 |
| Permitted axle load front/rear in kg | 1,070/1,170 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,800 |
| Trailer load 12% (braked) in kg | 1,800 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,995 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 140 (190)/4,000 |
| Engine torque (Nm) at 1/min | 400/1,750-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 238 |
|---|---|
| Acceleration 0–100 km/h in s | 7.5-7.4 |
| Urban in l/100 km | 5.8 |
|---|---|
| Extra-urban in l/100 km | 4.8 |
| Combined in l/100 km | 5.2 |
| CO2 combined emissions in g/km | 136 |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/50 R17 98 Y XL |
|---|---|
| Tyre dimensions rear | 225/50 R17 98 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Unladen weight EU in kg | 1,855 |
|---|---|
| Max. permissible weight in kg | 2,285 |
| Permitted load in kg | 505 |
| Permitted axle load front/rear in kg | 1,150/1,200 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,800 |
| Trailer load 12% (braked) in kg | 1,800 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,993 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 210 (286)/4,000 |
| Engine torque (Nm) at 1/min | 650/1,500-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 5.1 |
| Urban in l/100 km | x.x |
|---|---|
| Extra-urban in l/100 km | x.x |
| Combined in l/100 km | x.x |
| CO2 combined emissions in g/km | xxx |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/50 R17 98 Y XL |
|---|---|
| Tyre dimensions rear | 225/50 R17 98 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Unladen weight EU in kg | 1.905 |
|---|---|
| Max. permissible weight in kg | 2,340 |
| Permitted load in kg | 510 |
| Permitted axle load front/rear in kg | 1,170/1,225 |
| Luggage capacity min. (seats up or roof down) in l | 440 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,800 |
| Trailer load 12% (braked) in kg | 1,800 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,993 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 250 (340)/4,400 |
| Engine torque (Nm) at 1/min | 700/1,750-2,250 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 4.6 |
| Urban in l/100 km | x.x |
|---|---|
| Extra-urban in l/100 km | x.x |
| Combined in l/100 km | x.x |
| CO2 combined emissions in g/km | xxx |
| Tank capacity, approx. in l | 59 |
| Tyre dimensions front | 225/45 R18 95 Y XL |
|---|---|
| Tyre dimensions rear | 255/40 R18 99 Y XL |
| Wheel dimensions and material front | 7.5 J x 18 inches, light-alloy |
| Wheel dimensions and material rear | 8.5 J x 18 inches, light-alloy |
FUEL CONSUMPTION AND CO2 EMISSIONS.
BMW M440i xDrive Coupé:
Fuel consumption in l/100 km (combined): 8.5–8.0
CO2 emissions in g/km (combined): 194–181
Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp
Fuel consumption and CO2 emissions.
BMW M440i xDrive Coupé:
Fuel consumption in l/100 km (combined): 7.8
CO2 emissions in g/km (combined): 178
The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.
The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.
For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.
